Zehnder - ComfoVent 180 Rendszer 1 ComfoPipe Compact / ComfoPipe Plus DN 200-hoz

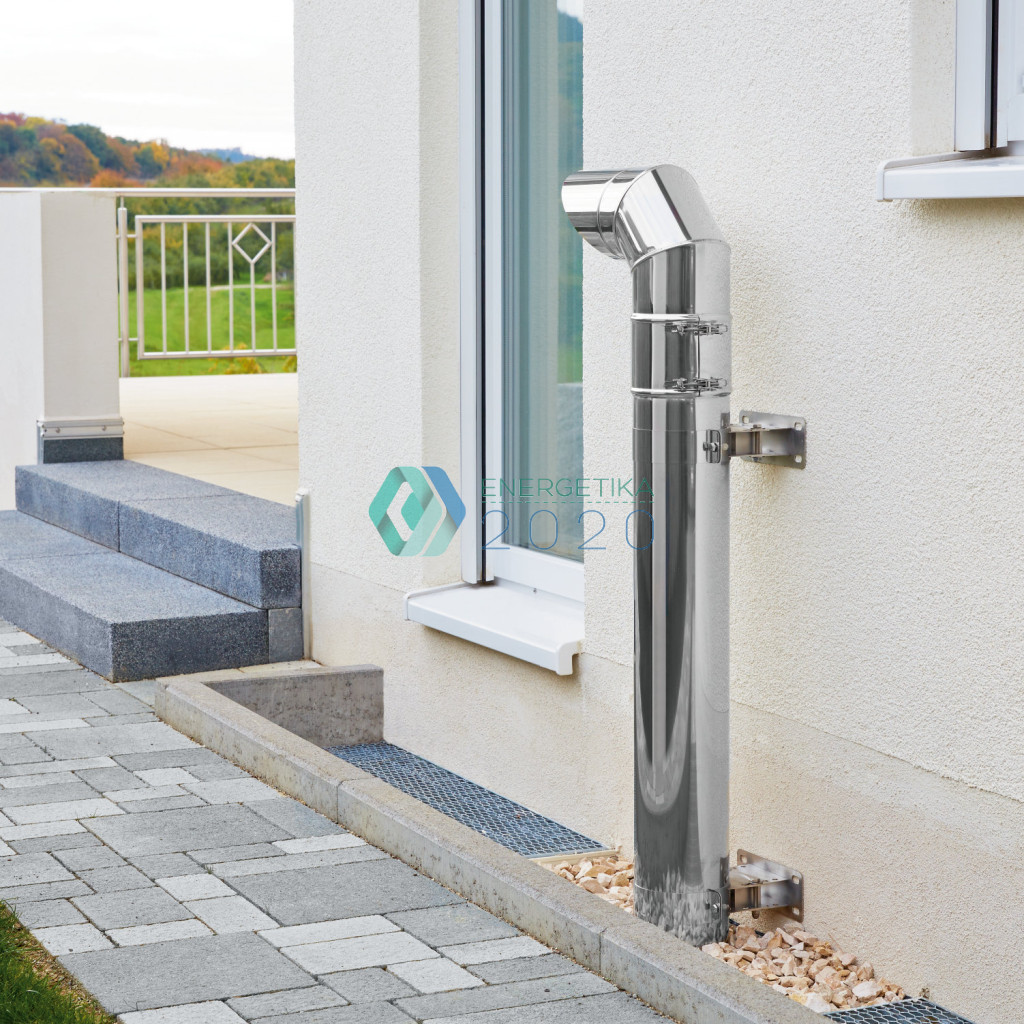

Facade system 1 for air flow of the outdoor air or exhaust air above

ground level and for connection to ComfoPipe Compact / Plus,

material stainless steel

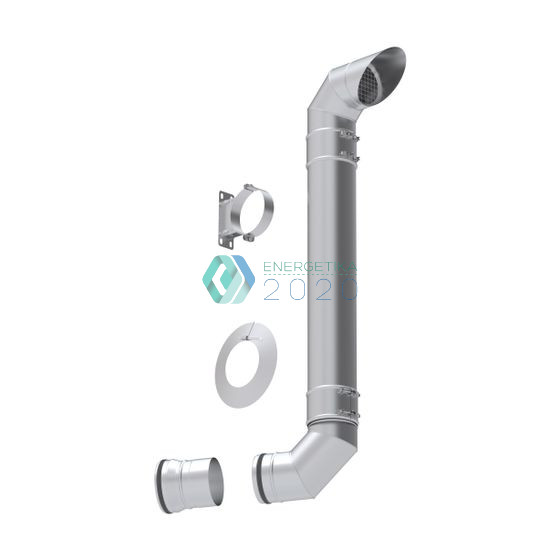

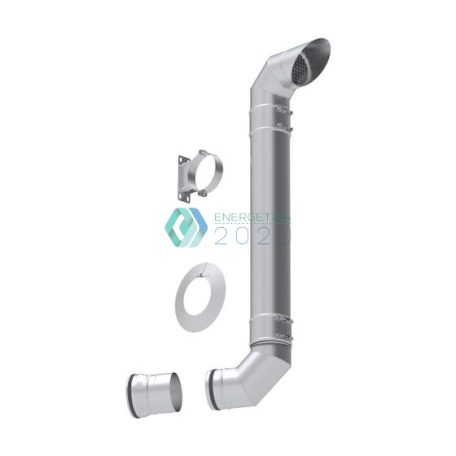

Set consists of:

1 x outdoor air bend (with seal and clamp fitting)

1 x length element L = 1080 mm (with seal and clamp fitting)

1 x 90° bend with seal

1 x wall bracket (adjustable 50-90 mm)

1 x adaptor DN 180 to ComfoPipe Compact /Plus DN 200

1 x wall rosette



ComfoVent 180 system 1

to ComfoPipe Compact / ComfoPipe Plus DN 200,

above ground level





Note: Going through the wall, ComfoPipe Compact

DN 200 (990 328 696) or ComfoPipe Plus DN 200 (990 328 720)

must be used (not included). Is a connection DN 160 coming from

the ventilation unit intended, a reduction adaptor (990 326 349) can

be used as transition from ComfoPipe Compact / Plus DN 200 on

to ComfoPipe Compact / Plus DN 160.
